FMB010 GPS Tracking Device

Name: FMB010 GPS Tracking Device
Brand: Kaptan GPS
Price: 3500 INR
Availability: InStock

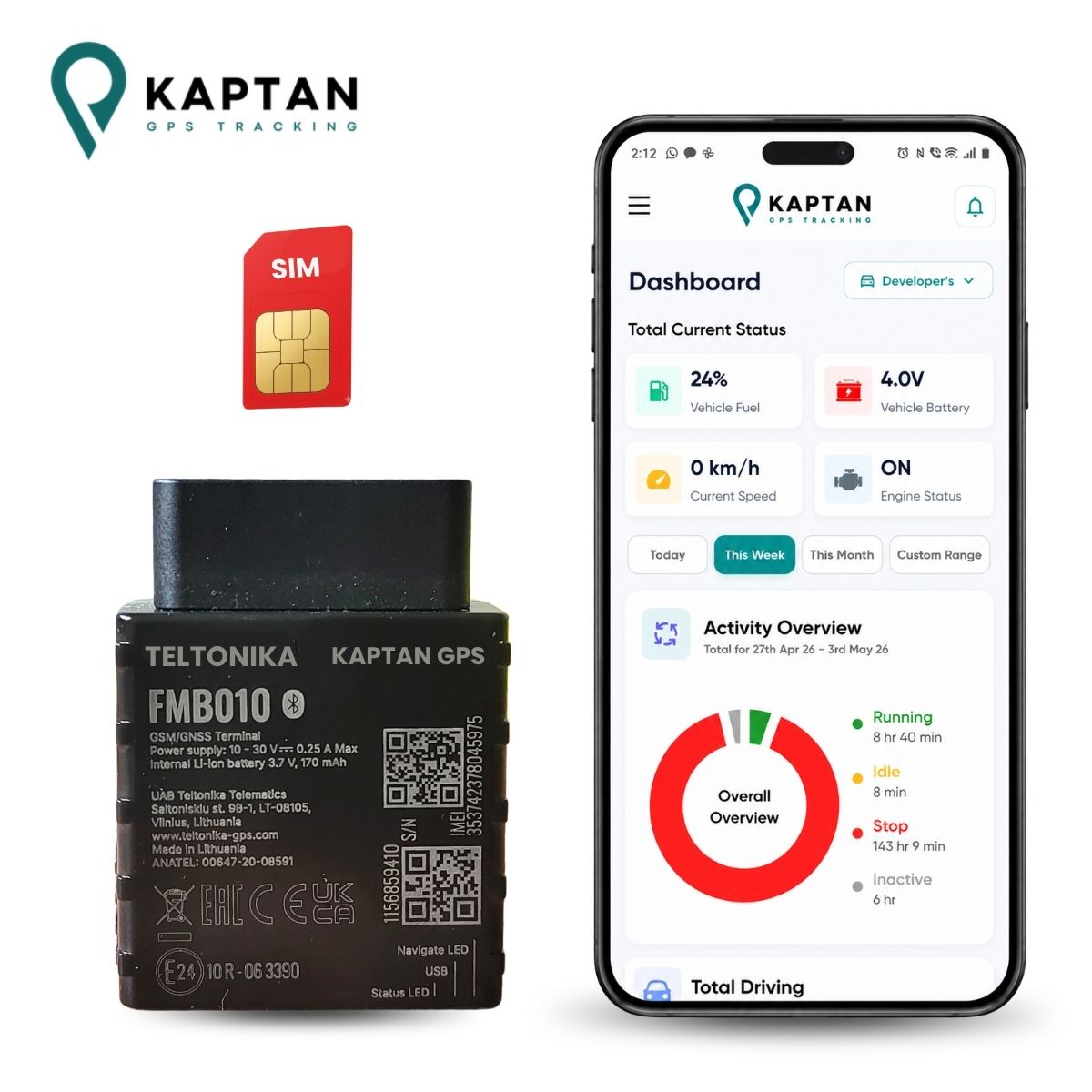

Kaptan GPS FMB010 Slim GPS Tracker - Front View

⚡ Plug & Track

Model: FMB010

OBDII Plug & Track Tracker

₹ 3500

One-time Investment • No Hidden Costs

1 Year Free Subscription
2 Years Warranty
Instant Plug & Play — No Wiring

About FMB010 GPS Tracker

The Kaptan GPS FMB010 is an easy OBDII "Plug & Track" vehicle GPS tracker with GNSS, 2G GSM, and Bluetooth LE connectivity. Unlike hardwired trackers, it plugs directly into a vehicle's standard OBD-II port, making installation instant and non-invasive.

Note: While it uses the OBD-II connector for direct power and ignition sensing, the FMB010 is primarily a tracking/telematics device rather than a deep OEM diagnostic scanner.

Monitor your vehicles in real-time with our dedicated Android & iOS app. Whether you are securing a personal car or managing a small fleet, the device provides reliable tracking and telematics with seamless coverage across India.

Key Features & Telematics Scenarios

Unplug & Security Alerts — Unplug Detection triggers an immediate alert if someone removes the device from the OBD port. Anti-theft support includes towing detection, GSM jamming detection, and auto/manual geofencing.
Driver Behavior & Crash Analysis — High-frequency crash trace data logged via an internal 3-axis accelerometer for accident reconstruction. Eco-Driving (Green Driving) monitors harsh acceleration, harsh braking, and harsh cornering. Tracks excessive idling and overspeeding.
Advanced Power Management (4 Sleep Modes) — GPS Sleep, Online Deep Sleep, Deep Sleep, and Ultra Deep Sleep reduce power draw to as low as 5 mA (at 12V) when the ignition is off, preventing vehicle battery drain.
Configuration & Management — Firmware and configuration updates over-the-air via FOTA Web, Secured SMS commands, or USB/Bluetooth connection using the Kaptan GPS Configurator tool.

Core Hardware & Connectivity

GNSS (Location) — 33-channel high-sensitivity receiver (-165 dBm) supporting GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, and AGPS.
Cellular Network — Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) with GPRS Class 12 fallback. Supports TCP, UDP, TLS, and MQTT network protocols.
Bluetooth 4.0 + LE — Connects wirelessly to external BLE sensors (temperature, humidity, door sensors, or driver ID beacons), headsets, or barcode scanners.
Power Supply — Operating voltage range of 10–30 V DC with overvoltage protection.
Internal Backup Battery — 170 mAh Li-Ion rechargeable battery (3.7 V) to keep sending alerts if the tracker is unplugged.
Internal Memory — 128 MB internal flash memory capable of storing up to ~422,000 records offline when cellular coverage is unavailable.

Target Use Cases

Courier & Express Delivery Services — Plug-and-play setup across changing delivery vehicles.
Car Rental & Leasing — Instant tracking without dashboard disassembly.
Usage-Based Insurance (UBI) — Driver behavior scoring via crash detection and eco-driving data.

Technical Specifications - FMB010

Feature	Specification Details
Brand & Model	Kaptan GPS - FMB010
Interface	OBDII Connector, Micro-SIM, Micro-USB 2.0, 2 Status LEDs
GNSS	33-channel high-sensitivity receiver (-165 dBm) — GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Cellular Network	Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) with GPRS Class 12 — TCP, UDP, TLS, MQTT
Bluetooth	Bluetooth 4.0 + LE for external BLE sensors, headsets & barcode scanners
Digital Inputs	1 Digital Input (via OBD pin connection)
Power Supply	10–30 V DC with overvoltage protection
Backup Battery	170 mAh Li-Ion rechargeable (3.7 V)
Internal Memory	128 MB flash — stores up to ~422,000 records offline
Antennas	Internal High-Gain GNSS and GSM antennas
Dimensions & Weight	50.7 mm × 49.6 mm × 25 mm; ~63 grams
Operating Temp	-40 °C to +85 °C (without internal battery active)
Ingress Protection	IP41 rating
Time Sync	GPS, NITZ, NTP
Warranty	2 Years Comprehensive Warranty
Subscription	1 Year Free Full Access Included

FMB010 vs Other GPS Trackers

Unlike hardwired trackers that require dashboard disassembly and professional wiring, the Kaptan GPS FMB010 plugs directly into a vehicle's standard OBD-II port — installation takes seconds and leaves no trace. The 170 mAh backup battery, 4 power-saving sleep modes, and BLE sensor support bring premium telematics into a plug-and-play form factor.

Beyond the technology, we offer what most competitors don't: a comprehensive 2-year warranty, 1-year free subscription, and the peace of mind that comes with local, Vadodara-based expert support instead of automated call centers.

Service Areas

We provide dedicated on-site installation and expert support across Vadodara, Bharuch, Ahmedabad, and Surat. With our extensive network, we offer pan-Gujarat coverage, ensuring that your vehicle is secured by professional technicians no matter where you are located. Our team is available 24/7 via Call and WhatsApp to provide instant assistance and technical guidance whenever you need it.

FMB010 GPS Tracker FAQs

Which vehicles is the FMB010 compatible with?

The FMB010 works with any vehicle equipped with a standard OBD-II port, including most modern cars, SUVs, and light commercial vehicles. It plugs directly into the port for instant power and ignition sensing — no wiring required.

Does the FMB010 require professional installation?

No. It is a Plug & Track device — you simply insert it into the OBD-II port under the dashboard. No wiring, no dashboard disassembly, and the port provides both power and ignition sensing.

What happens if someone unplugs the device?

The FMB010 detects removal from the OBD port and instantly sends an Unplug Detection alert to your phone. A built-in 170 mAh backup battery keeps the device powered long enough to transmit the alert and continue reporting.

Will the FMB010 drain my vehicle battery?

No. When the ignition is off, the device automatically enters one of its 4 sleep modes (GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep), reducing power draw to as low as 5 mA at 12V — protecting your vehicle battery.

Can the FMB010 read engine error codes like an OBD scanner?

No. Although it uses the OBD-II connector for power and ignition sensing, the FMB010 is a GPS tracking and telematics device rather than a deep OEM diagnostic scanner.

Is there a monthly subscription fee?

Yes, however, your purchase comes with the First Year Absolutely FREE. We include 12 months of complimentary service, which covers all SIM card data, cloud server maintenance, and 24/7 unlimited app access. After the first year, a small and transparent subscription fee applies.
